PN020 - PIN Manager (BSI and Engine Control Unit)
Overview
This is the new PIN Manager for Peugeot and Citroen vehicles, containing the legacy PN018 license.
Login for pricing
In stock
Details
The PIN Manager allows you to read the PIN code from the BSI or ECU units and use it to program keys for Peugeot and Citroen vehicles, manufactured after 2016.
Functionalities:
* PIN code reading
* Key programming (HT-AES)
* Emergency start

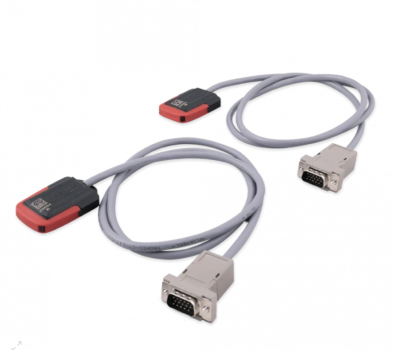

The PIN code is retrieved by using the ZN094 key emulator, which can consequently be used for emergency start in All Keys Lost situations, in order to start and drive the vehicle to the nearest workshop.
For vehicles 2021+ with BSI the PIN is read directly in seconds even in a case of All Keys Lost It is no longer necessary to read the BSI EEPROM or to read the PIN from the Engine Control Unit!
For vehicles 2022+ with VSM the PIN is read directly in seconds, but a working key is required or VSM EEPROM dump in a case of All Keys Lost.
The new procedure is a much faster, easier and safer solution!
Note: Retrieving the PIN by ZN094 emulator does not bypass 30 minutes waiting time when learning a new key.
Supported models:
* All models after 2016 with HT-AES key type
* Models equipped with a BSI module (unlocked) manufactured up to 2021
* Models equipped with a BSI module (locked) manufactured after 2021
* Models equipped with a VSM module (locked) manufactured after 2021
Examples:
* Models equipped with a BSI module, such as:
Peugeot:
* Peugeot 3008 II
* Peugeot 5008 II
* Peugeot 208 II
* Peugeot 308 II
* Peugeot 508 II
Citroën:
* Citroën C3 III
* Citroën C4 II Picasso (2016+)
* Citroën C3 Aircross
* Citroën Jumpy (2016+)
DS:
* DS 7 Crossback
* DS 3 Crossback
* Models 2021+ equipped with a VSM module, such as:
* Peugeot 308 III
* Opel Astra L
* Citroën C5 X
* DS4 II
and many more!
