FN022 - PIN and Key Manager for FCA/Iveco Function

Overview

- Key Programming

- Prepare transponder by dump

- Read/Update BCM Config

- PIN Reading for FCA

ZN003 PROTAG Required

Login for pricing
In stock
Details
This powerful license is dedicated to the PIN code reading and key and remote-control programming of Fiat/Lancia/Alfa/FCA (FIAT CHRYSLER AUTOMOBILES) vehicles for mechanical keys and keyless access keys.
License highlights:

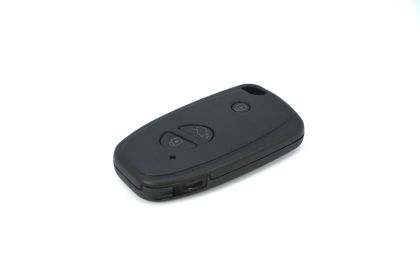

Program keyless keys for the latest FCA vehicles, manufactured after 2020.


New models 2020+ added for key programming!
  • Alfa Romeo Guilia and Stelvio
  • Jeep Renegade, Wrangler, Gladiator
  • Fiat 500X
  • Dodge RAM (DT)
  • Fiat Qubo 2020+ and Fiorino 2020+
  • Maserati Levante and Ghibli
  • Fiat Tipo 2021 Keyless
  • Dodge Charger 2021 Keyless

Main functionalities:
PIN reading and Key programming
Transponders/Keys preparation
Remote control programming
BCM - Configuration data read and update PIN

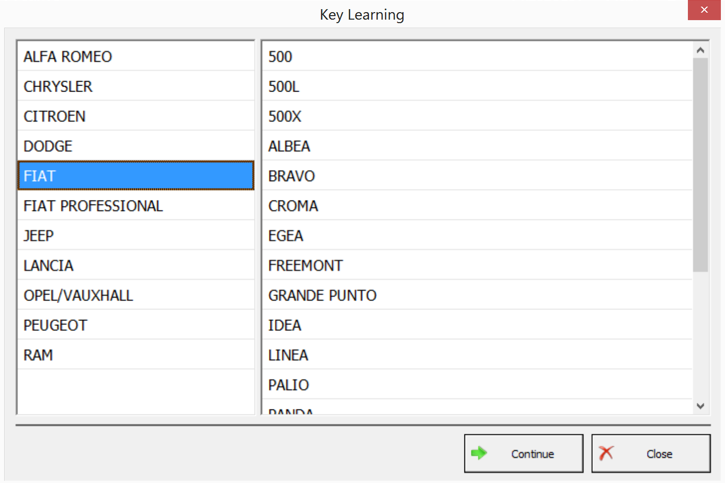

Key learning and remote programming by OBDII

ALFA ROMEO
147
159
Brera
Giulia (incl. 2020+)
Giulietta
GT
Mito
Stelvio (incl. 2020+)

FIAT
500 (incl. 2020+)
500L
500X
Albea
Argos
Bravo
Croma
Doblo (incl. 2020+)
Ducato (HITAG2 keys, up to 2022)
Egea
Fiorino (incl. 2020+)
Freemont
Grande Punto
Idea
Linea
Palio
Panda (incl. 2020+)
Punto
Punto Evo
Qubo (incl. 2020+)
Siena
Strada
Stilo
Tipo

LANCIA
Delta
Flavia
Thesis
Ypsilon (incl. 2020+)

JEEP
Cherokee KL 2013+
Commander
Grand Cherokee (up to 2022)
Liberty (2008+)
Renegade (up to 2022)
Wrangler (incl. 2020+)

CHRYSLER
200
300
Pacifica (2017+)
PT Cruiser
Sebring
Town & Country

DODGE
Aspen
Avenger
Caliber
Caravan
Challenger
Charger
Dart
Durango
Journey
Magnum
Neon
Nitro
RAM 1500, 2500, 3500, 4500, 5500
Viper (2013+)

RAM
Dakota
Promaster City
Promaster 1500, 2500, 3500 (up to 2019)
RAM 1500, 2500, 3500 Cab Chasis and Pickup, 4500, 5500
RAM (Mexico)

CITROËN
Jumper
Relay

IVECO
Daily (HITAG2 keys, up to 2022)

OPEL/VAUXHALL
Combo D

PEUGEOT
Boxer (up to 2020)

MASERATI
Ghibli
Levante
Transponder maker by dump - Preparing transponder by dump of BCM to be ready for key programing.

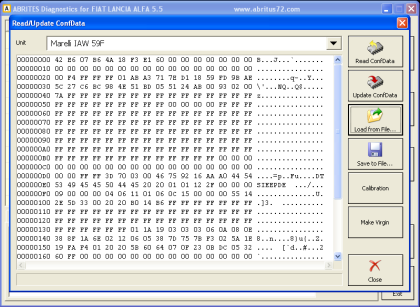

BCM Read/Update ConfData by OBDII from:
BCM Delphi (93C66) - NOTE: PIN Code is required!
BCM Delphi (NEC 70F3237/70F3379,93C86)
BCM Delphi (NEC 70F3556)
BCM Delphi (NEC 70F3557)
BCM Delphi (NEC 70F3632/70F3633) (up to 2020)
BCM Marelli (912DG128, 3K91D)
BCM Marelli (9S12DG256, 1K79X)
BCM Marelli (NEC 70F3237/70F3378,95160)
BCM Marelli (NEC 70F3633,95320)
BCM Marelli (MB91465P, 95640)
BCM Siemens (9S12DG128)

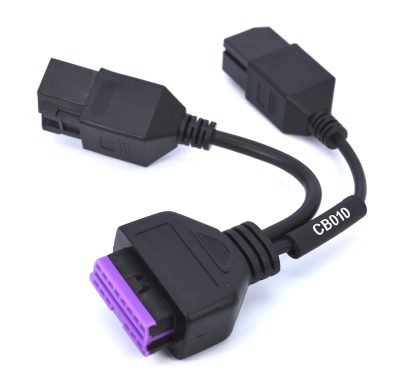

In some vehicles, security gateway may be present, in which case the CB019 cable set is required to perform the procedure. In All Keys Lost situations, the CB017 and the ZN051 ABRITES Distribution Box is also required.
This license includes the functionalities of FN002, FN007, FN008, FN009, FN011, FN012, FN016, FN017 and CR005 legacy licenses.
An AVDI interface with an active Assist plan in order to purchase and ZN002 Protag programmer is needed to use this license.
