MN030 - FBS4 Instrument Cluster Calibration
Overview
Abrites software license for mileage calibration, module replacement, retrofit, AMG menu activation via OBD for a wide selection of dashboards, used in Mercedes-Benz FBS4 vehicles.
Login for pricing
In stock
Details
The MN030 license is dedicated to odometer calibration and module replacement by OBDII for dashboards of FBS4 vehicles equipped with a selection of dashboards.
Supported dashboards:
* IC222
* IC213
* IC172
* IC204
* IC164
* IC221
Main functionalities:
* Blocks synchronisation between the Instrument Cluster and the EZS - for models with IC213 (for all others, an emulator is required)

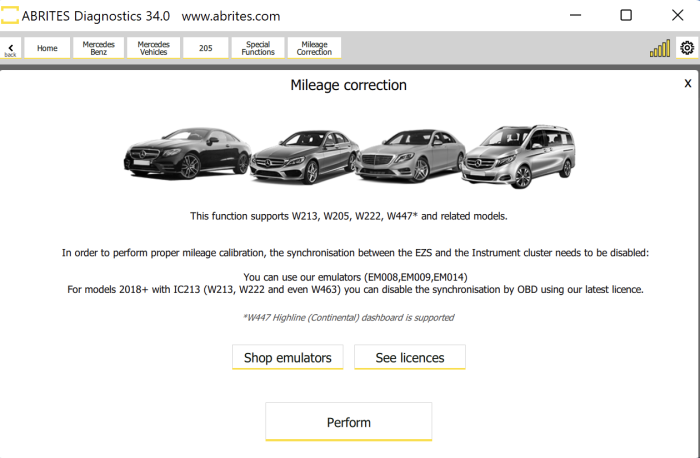

* Allows successful mileage calibration - IC213, IC222 (IC172, IC204 newly added)
* Allows modules replacement (dashboard) - Make virgin and Adapt - IC213, IC222 (IC172, IC204 newly added)
* Different retrofit options like update from analogue to digital dials - IC222, IC213
* AMG Menu Activation (IC172, IC204, IC213, IC164, IC221, IC222 dashboards)
Supported models with IC213 and IC222:
* W213
* W205
* W222
* W217
* W238
* W253
* W257
* W463
* W447 (with high-line clusters)
* related models
Supported models with IC172:
* A-Class (W176)
* B-Class (W246)
* CLA (W117)
* GLA (W156)
* G-Class (W463, model years 2013-2017)
* ML/GLE (W166/W292)
* GL/GLS (X166)
* SLK/SLC (W172)
* SL (R231, facelift models)
*The models equipped with an IC172 dashboard, manufactured after 2014, use an EEPROM, which can be locked for writing by OBD and require bench preparation. In order to complete the preparation, unsolder the EEPROM from the PCB and use the ABPROG programmer to program the dump generated by the software.
Supported models with IC204:
* W204 (Sedan)
* S204 (Station wagon/Estate)
* C204 (Coupé)
* E-Class (W212/W207 pre-facelift models)
* GLK (X204)
* W218 (Sedan)

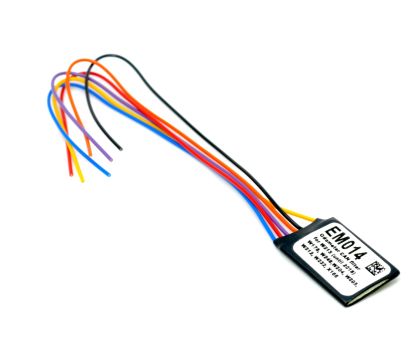

Models with IC222 dashboard require an emulator.
An AVDI interface with an active annual subscription is required.
