PN018 PIN Manager Function

Overview

This function enables reading/changing pin code by OBD II (CAN bus).

Improved PIN reading for specific Valeo BSI and added support for specific JCI BSI.

Support added for Peugeot 208, Peugeot 2008, Peugeot 301, Citroen C-Elysee with Valeo BSI (UDS) - PIN reading

Added PIN code extraction from Valeo BSI modules (utilizing UDS protocol) 2015+.

Added Pin code extraction from Continental UDS BSIs from 2015+

Improved support for JCI CAN BSI 2015+

Added Pin code extraction from DELPHI CAN BSI 2016+



Login for pricing
In stock
Details
The PN018 PIN Manager is a leader in the aftermarket solutions for key and remote control programming for the Peugeot/Citroën PSA vehicle range.

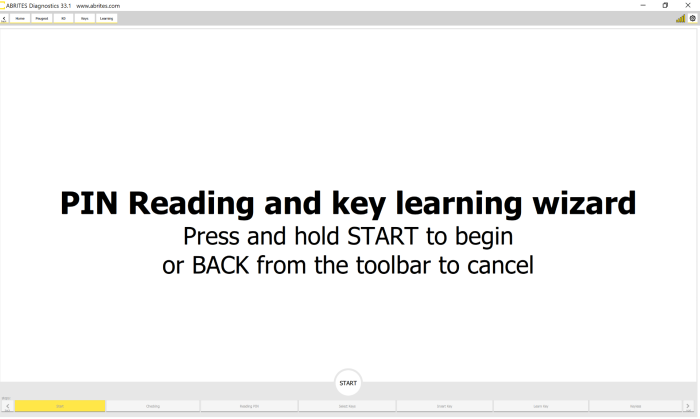

Abrites is always one step ahead in terms of PIN code reading and key/remote control programming, covering the whole range of vehicles. PN018 lets you read the PIN code from all BSI types, and program keys, all by OBDII, as well as skip wait mode for models 2018+.
More functionalities:
BSI Exchange - allows you to read the whole content of the one BSI and transfer it to another one. You will need to own both special function PN018 and PN017 to complete this procedure. (all BSI units)

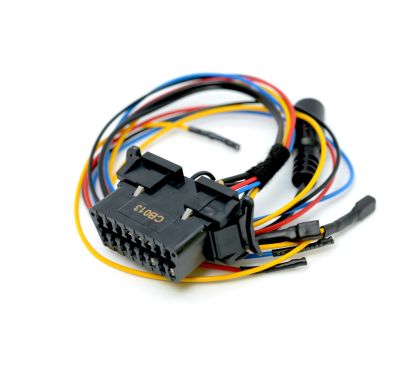

ECU Replacement - in case of ECU replacement, you can replace the defected ECU with a second-hand ECU, read its PIN (preferably on bench using CB013) and change the BSI PIN to match the replacement's ECU PIN. Then, a new set of keys need to be programmed to the vehicle.
The following BSI platforms are supported:
  • Siemens K-Line
  • Siemens CAN
  • Johnson Controls CAN (including 2015+ with SPC microcontroller)
  • Valeo CAN
  • Continental UDS (including 2015+ locked)
  • Valeo UDS
  • Delphi CAN (Latin America)
  • Delphi UDS
Supported models for PIN code reading:
  • PEUGEOT
3008 II Hybrid
Expert
208 II
308 II
308 III
508 II
2008 II
3008 II
5008 II
Partner III
  • SEE MORE
206+
207
207+
208
301
307 CAN
308
RCZ
407
408
508
607 CAN
807 CAN
2008
5008
Partner II
Expert
Traveller
  • CITROËN
C5 Aircross
C3 III
C3 Picasso
C3 Aircross
C4 III
C4 Cactus
C4 Picasso II
C4 Aircross
C5 Aircross
Berlingo III
Partner
  • SEE MORE
C3 CAN
C3 II
C-Elysee
C4
C4 II
C4 Cactus
C4 Picasso
C5
C5 II
C6
C8 CAN
Berlingo II
Jumpy
Dispatch
Spacetour

  • DS
DS 3
DS 3 Crossback
DS 4
DS 4 II
DS 5LS
DS 5
DS 6
DS 7  Crossback

  • Toyota
ProAce 2016+

  • Lancia
Phedra 2008+

  • Opel/Vauxhall
Crossland
Corsa F
Combo
Combo E
Grandland
Mokka
Vivaro

  • Fiat
Scudo 2022+
Ulysse 2022+
Аn AVDI interface with an active Assist plan is required to purchase and use this special function.
