AVDI - Hardware + Basic Software

Overview

An AVDI (ABRITES Vehicle Diagnostic Interface) is the next generation  of auto diagnostics tool available. It is compatible with  the ABRITES AVDI Diagnostics software available here

SAE J2534 fully compliant driver included as standard. Compatible with Tech2Win, Volvo VIDA, BMW DIS, Ford Scanner, Subaru Select Monitor III etc. Compatibility with VW/Audi/Seat/Skoda/Bentley/Lamborghini ODIS

VCI emulator which can allow AVDI to emulate different interface units (like K-line interface, ELM327 interface, ..). Emulation allowing you usage of many additional 3-rd party software’s – Webasto TT, Evinrude Diagnostics, Suzuki/Yamaha Marine Diagnostics and many other

One year access to the AVDI Assist Plan - Priority is included with a new AVDI for new customers only.

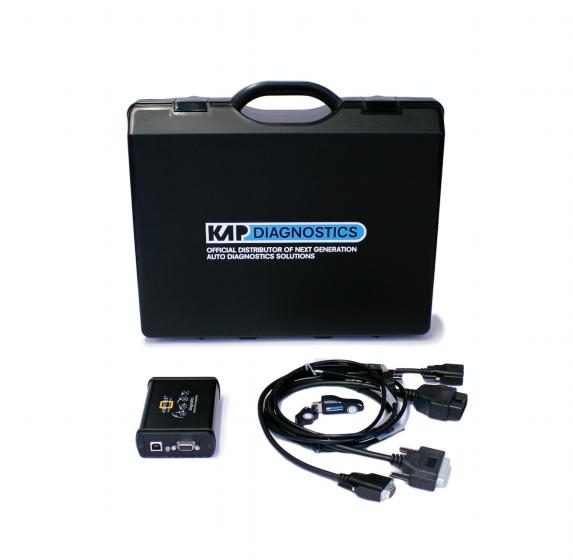

Case - A tough and rugged AVDI specific case is included. Only one per new customers only.

Login for pricing
In stock
Details

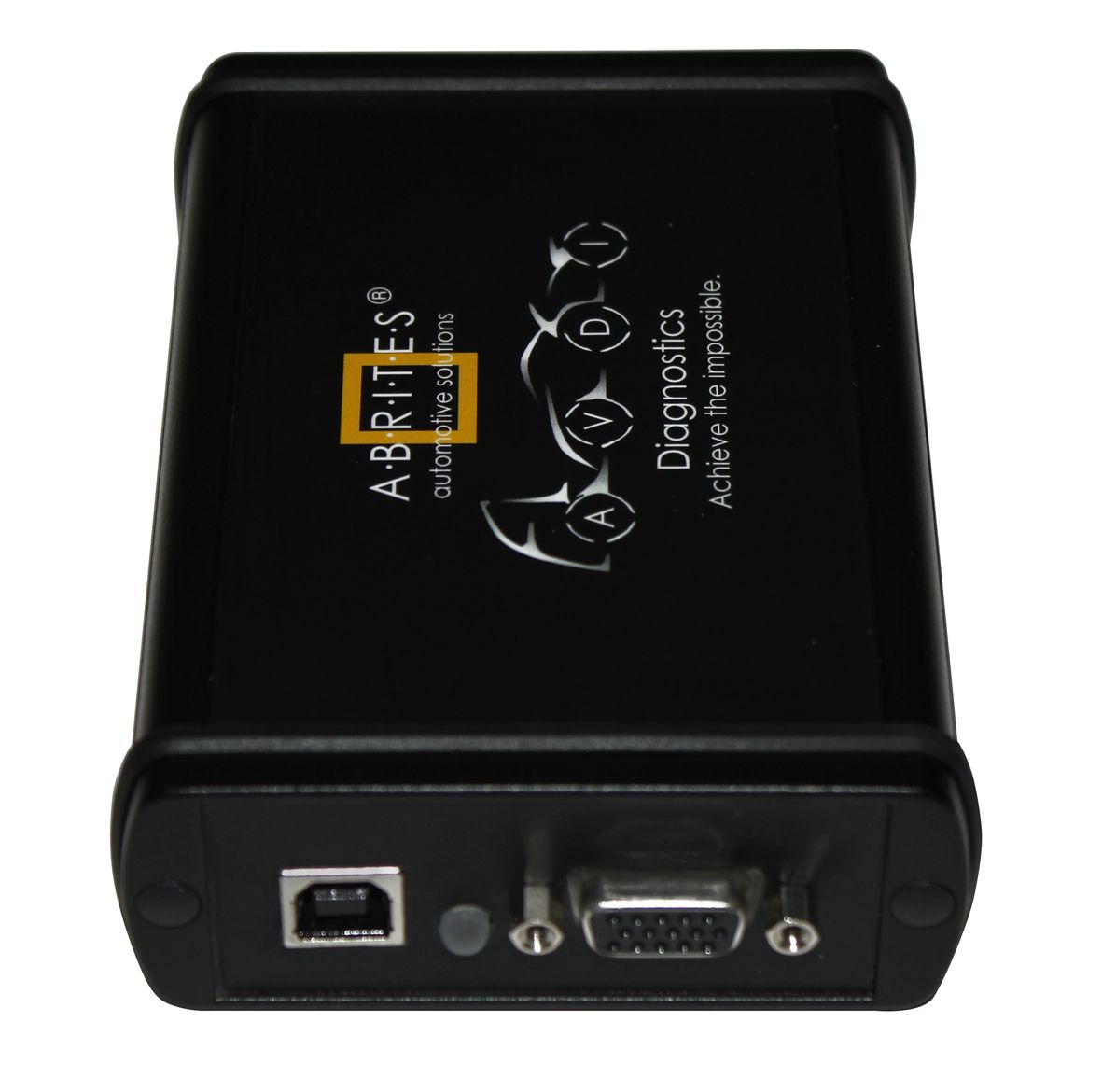

An AVDI (ABRITES Vehicle Diagnostic Interface) is the next generation diagnostic interface hardware produced by Abritus 72. The AVDI is designed to communicate via OBDII to almost any vehicle on the market via its diagnostic link.

The AVDI is compatible with  the ABRITES AVDI Diagnostics for VAG/Porsche/Mercedes/Opel/ Toyota/BMW/Renault/Fiat/Peugeot/Nissan/Toyota/Chrysler/Fiat/DAF/Mitsubishi/Hyundia/Suzuki/Volvo/Bikes and Ford, special functions available here. ABRITES AVDI Diagnostics software will not operate without an AVDI unit.

An AVDI user receive complimentary the following standard diagnostic functions in all ABRITES AVDI diagnostics :

  • Electronic control units identification
  • Read and Clear DTCs
  • Displaying of live data
  • Programming/Adaptation/Coding functions

Also added  to the basic AVDI unit is an SAE J2534 fully compliant driver.

ABRITES AVDI Diagnostics special functions  cover key programming, PIN code extraction, part adaptation, ECU flash R/W, DTC read/erase, airbag crash data removal mileage recalibration  and much more and are available here

Technical specification:

  • K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
  • Compatible interface with DIS on K-line and CAN.
  • KWP2000 - ISO14230
  • Single wire CAN bus multiplexed to different pins of diagnostic connector
  • Dual wire CAN bus multiplexed to different pins of diagnostic connector
  • CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant
  • Analog Input
  • USB interface to the PC
  • Supply voltage 8..30V DC
  • OBDII cable
  • Updatable firmware
