ZN073 - BDM Programmer

Overview

- BDM Programmer

Login for pricing
In stock
Details

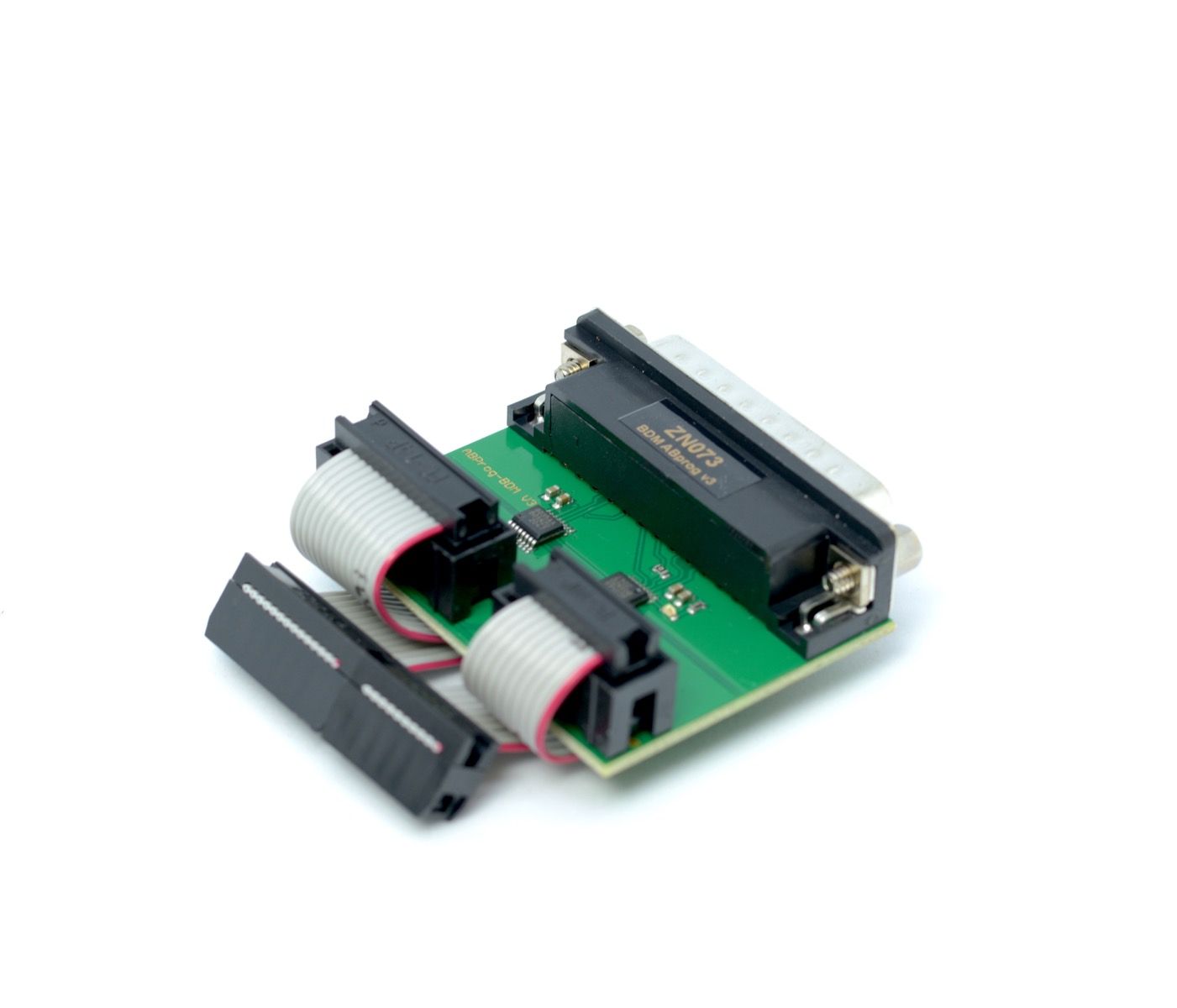

The ZN073 BDM Programmer is an adapter that is connected to the ZN030 ABPROG Programmer and cannot be used individually. It allows reading/writing of PFlash and DFlash of EDC16XX, MED9.X and other ECUs on bench.
Currently, the following MCU processors are supported for reading/writing:
  • MPC555/556 Flash
  • MPC555/556 CMF A/B Shadow Rows
  • MPC533/534/564 CMF Flash
  • MPC533/534/564 Shadow Row
  • MPC535/536/565/566 CMF Flash
  • MPC535/536/565/566 CMF A/B Shadow Rows
  • MPC5XX External Flash (58BW016XX, AMDXX, Intel28XX, Micron
  • 58BW016XX, Numonyx 58BW016XX, Spansion 29CXX, ST 58BW016XX)
  • MPC5XX External EEPROM (ST 95640, ST 95320, ST 95160, ST 95080)
A new AVDI interface or a valid Assist plan and a ZN030 programmer are required for the purchase of the product.
