AVDI
- AVDI - Hardware + Basic Software
Login for pricingAn AVDI (ABRITES Vehicle Diagnostic Interface) is the next generation of auto diagnostics tool available. It is compatible with the ABRITES AVDI Diagnostics software available here.
SAE J2534 fully compliant driver included as standard. Compatible with Tech2Win, Volvo VIDA, BMW DIS, Ford Scanner, Subaru Select Monitor III etc. Compatibility with VW/Audi/Seat/Skoda/Bentley/Lamborghini ODIS
VCI emulator which can allow AVDI to emulate different interface units (like K-line interface, ELM327 interface, ..). Emulation allowing you usage of many additional 3-rd party software’s – Webasto TT, Evinrude Diagnostics, Suzuki/Yamaha Marine Diagnostics and many other
One year access to the AVDI Assist Plan - Priority is included with a new AVDI for new customers only.
Case - A tough and rugged AVDI specific case is included. Only one per new customers only.
The ABRITES equipment requires the use of a laptop with Windows 11 OS

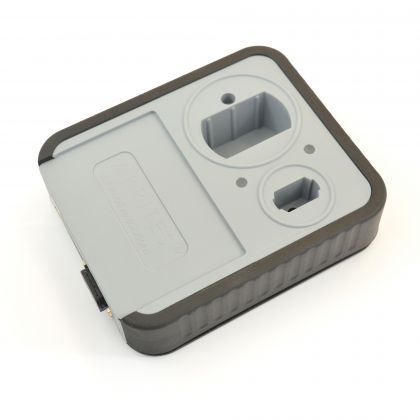

Learn More - ZN002 - PROTAG Programmer
Login for pricingThe PROTAG programmer is the latest generation tool intended for operation with keys and transponders used in the latest authentication systems and immobilizers.
It provides all the current functionality of the Tag programmer and a lots more.
PROTAG is ready to program all keys and transponders produced by ABRITES Ltd.
TA31 Abrites extractor is included in the box.
Learn More

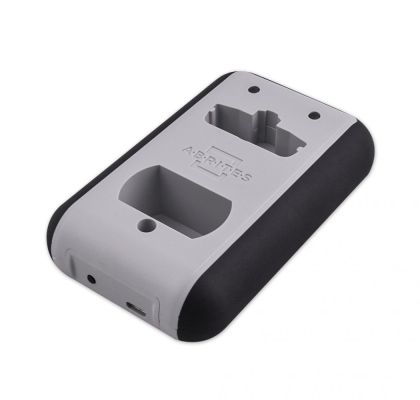

- ZN003 - Protag V2 with TA31 and Activation
Login for pricingList of supported transponders/keys:- Mercedes-Benz IR keys (FBS3)
- Mercedes-Benz trucks keys
- All types Philips PIT type - 7930, 7931, 7935,...
- All types HITAG-2 including internal NVR memory (eeprom) and remote control memory. Operating modes password mode, cipher mode, manchester encoding, biphase encoding
- All types HITAG-Pro
- All types HITAG-AES
- All types HITAG-Extended
- All types HITAG-3
- Audi BCM2 based keys
- Sokymat 8E including internal NVR (eeprom) memory of Audi keys
- Megamos 13 and its emulation over T5/Nova, TK5551, PIT
- Megamos 48 compatible
- Megamos AES
- Tiris 4C and cloning over TPX1 compatible
- Tiris 4D/4E and cloning over TPX2/EH2/CN1/CN2/TA7/TA36 compatible
- Tiris DST+ and cloning over TA68
- Tiris AES and cloning over TA64
- Temic 11/12 and cloning over T5/Nova or TK5551
- Temic 8C and cloning over TK5551
Reset used OEM keys to virgin state:- Chrysler, Dodge Jeep Hitag-2 keys
- Hyundai/Kia Hitag-2 keys
- Audi A6/Q7 keys
- All types of Toyota/Lexus/Scion smart keys
Key/Transponder cloning support:- All types Toyota/Lexus/Scion DST-AES/Hitag AES keys (H Type keys)
- All types Toyota/Lexus/Scion Tiris DST+ (G type keys)
- All types Hyundai/Kia Tiris DST+
- All types HITAG-2 (example Mercedes/Dodge Sprinter, Iveco, Porsche, ...)
- All types Megamos 13 (example Volkswagen, Hyundai, Kia, ...)
- Megamos 48 (example Chevrolet)
- All types Temic 11/12 (example Mercedes Sprinter, Mercedes Actros, ...)
- Ford/Mazda Temic 8C
- ID33 types (example OPEL, Peugeot, Renault, ...)
- All types Tiris 4C (example Ford, Honda, Acura, Toyota, ...)
- All types Toyota/Lexus/Scion ID67, ID68, ID70
- All types Tiris 4D/4E (example Subaru, Ford, Mazda)
Transponders low level operations:Learn More- Read/write user data
- Read/write remote control data
- Operation mode configuration
- Authentification
- Secret key programming
- NVR (eeprom) memory access
- Automatic transponder detection

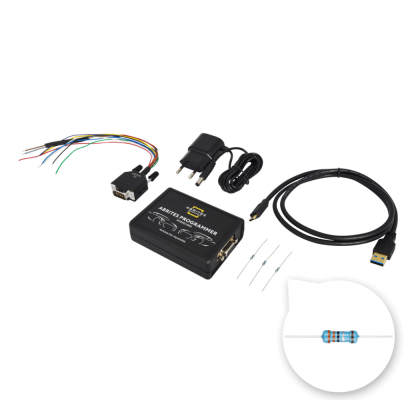

- ZN085 - Abrites Programmer RH850/V850
Login for pricingSupported V850/RH850 Processors:Learn More- VDO MQB Analogue V850 70F3526
- VDO MQB Virtual Cockpit V850 70F3526
- VDO MQB Analogue V850 70F3525
- VDO MQB Analogue V850 70F3537
- JCI MQB Analogue V850 70F3529
- JCI MQB Analogue V850 70F3532
- JCI MQB Analogue V850 70F3532 rev2
- JCI MQB Analogue V850 70F3525(A)
- VDO MQB Virtual RH850 R7F701401 (with Megamos-AES keys)
- VDO MQB Analogue RH850 R7F701407
- VDO MQB Analogue RH850 R7F701402 (with Megamos-AES keys)
- Renault HFM RH850
- Renault BCM RH850
- Ford BCM 1573
- And many more to come!
-
Keyprogramming by RH850 dump for FCA vehicles requires the FN024 license.

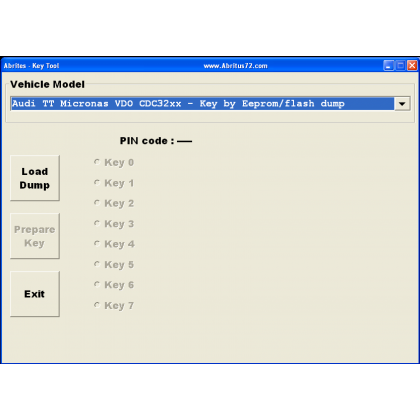

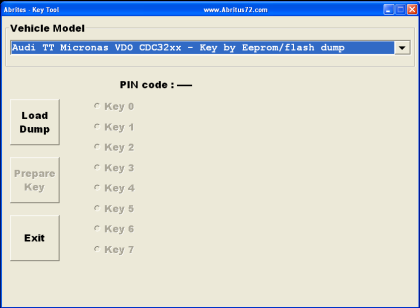

- KT010 TagKeyTool Function
Login for pricingThis software is FREE with ZN002 transponder programmer and will provide you access to the internal memory and configuration of transponders.
Available tool for generation of keys by dump of immobilizer system of the vehicle (more than 1000 models are covered)
Provided is the ability for preliminary preparation of transponders to be ready for usage with diagnostic equipment.
Available functionality for cloning of Megamos 13, Temic 11,Temic 12, Texas 4C, PIT ID 33,Tiris 4D, Tiris 4E, Temic 8C( Mazda,Ford,Proton).
Available list of currently supported vehicles, trucks, and bikes from SW version 10.5
Available list of available transponders that can be produced
ZN002 PROTAG programmer required

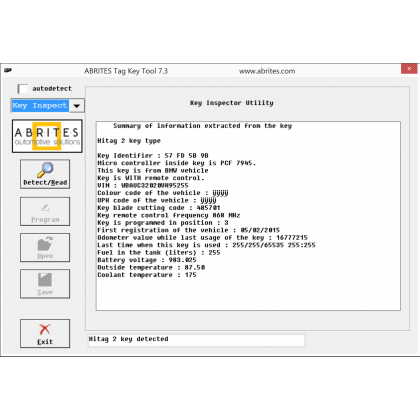

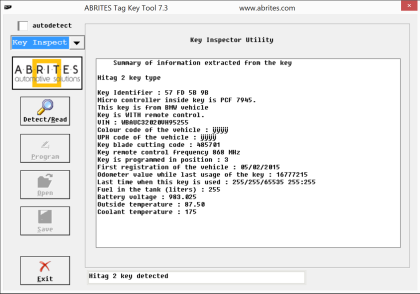

Learn More - KT011 - Key Inspector
Login for pricingThis special function enables the displaying of information from different keys (VIN, last drive, mileage, etc)
Learn More

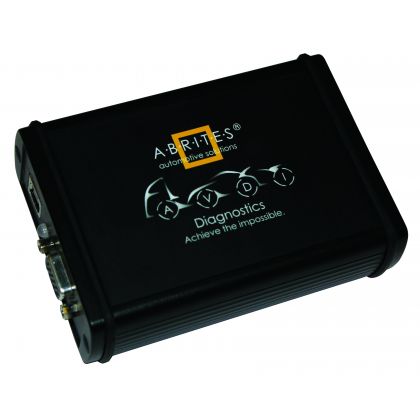

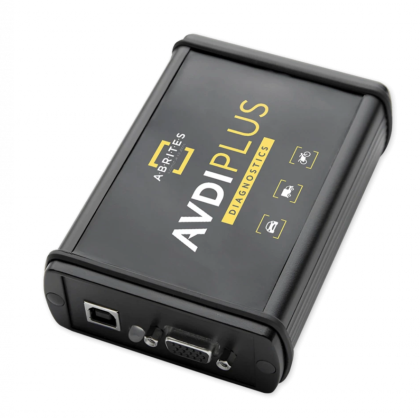

ABRITES Vehicle Diagnostic Interface (AVDI)
ABRITES Vehicle Diagnostic Interface (AVDI) is the next-generation diagnostic hardware developed by ABRITES Ltd. It communicates with almost any vehicle via its diagnostic link and is compatible with all ABRITES diagnostic software including VAG, Porsche, Mercedes, Opel, Toyota, BMW, Renault, and more.
All ABRITES software can be added to a single AVDI unit. Please note: ABRITES Commanders/software will not operate without an AVDI device.
Purchasers of an AVDI receive complimentary standard diagnostic functions in all ABRITES Commanders. Advanced features like key programming and security code extraction can be purchased separately.
