KT011 - Key Inspector

KT011 - Key Inspector is an additional software function which allows you to read all the data from a key. It works together with the Abrites PROTAG Programmer.

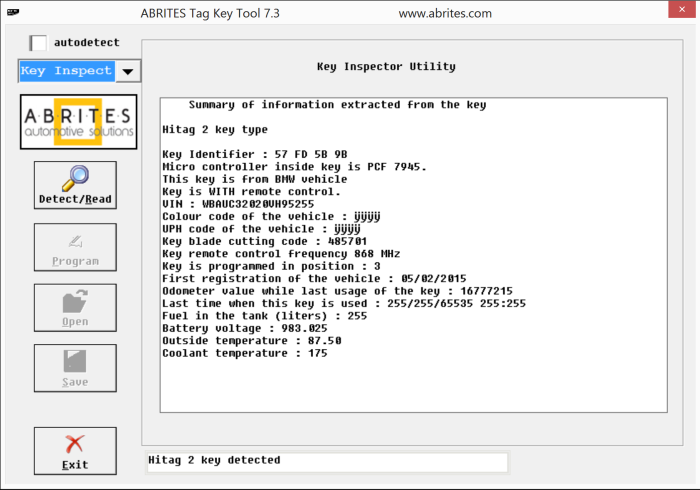

Once you place the key in the PROTAG programmer and read it using Key Inspector, you will see all the information contained inside the key. This depends strongly on the type of key but you can typically expect to see details ranging from the type of transponder for older key types, to full, detailed information such as:



Vehicle Identification Number (VIN)

Vehicle colour code

Vehicle Type

Time and date of last drive

Battery voltage

Quantity of fuel in the tank

Mileage stored in the key



• BMW keys:

- Key make - BMW

- Remore control functionality available – YES or NO

- Type of transponder / processor (7935 or 7931) / (ELMOS)

- Position of the key in the immobilizer - "from 0 to 9"

- Fixed code of the key: "16 characters"

- Vehicle equipment data

- VIN number

- Mileage values stored in the key upon last start



• All vehicles

- Transponder ID: xx xx xx xx

- Transponder type – PCF 7936, 7945, 7941, 7961, etc.

- Transponder status – Locked (already programmed) or Blank (not programmed)



• OPEL/VAUXHALL :

- Key make: OPEL/VAUXHALL

- VIN number

- Mileage values stored in the key upon last start



• RENAULT :

- VIN number

- Registration plate (if provided)

- Mileage values stored in the key upon last start

- Fuel level (litres)

- Oil level (proportion)

- Date of return

- Date of the technical inspection (if provided)



-    Key make – BMW

-    Remote control functionality available / Hands-free

-    VIN number

-    Vehicle colour code

-    Interior upholstery (UPH code)

-    Key blade cutting code

-    Frequency of the remote control

-    Position of the key in the immobilizer - "from 0 to 9"

-    Date of first registration of the vehicle

-    Mileage values stored in the key upon last start

-    Date / time of the last use of the key

-    Fixed code of the key: "16 characters"

-    Fuel level (litres)

-    Battery voltage

-    Outside temperature

-    Coolant temperature



-    Hitag 2 key type

-    Key Identifier : B5 B1 7D 97

-    Micro controller inside key is PCF 7945.

-    The transponder is NOT blank

-    This key is from BMW vehicle

-    Key is WITH remote control.

-    VIN : WMWZC51000WK70320

-    Colour code of the vehicle : 0A48

-    UPH code of the vehicle : FSGZ

-    Key blade cutting code : 4B7490

-    Key remote control frequency 868 MHz

-    Key is programmed in position : 1

-    First registration of the vehicle : 15/12/2010

-    Odometer value while last usage of the key : 165247

-    Last time when this key is used : 21/02/2019 18:11

-    Fuel in the tank (litres) : 0

-    Battery voltage : 14.970

-    Outside temperature : 17.50

-    Coolant temperature : 68



Transponder ID



Transponder ID

Transponder status – Locked (already programmed) or Blank (not programmed)



Transponder ID



Transponder ID



Transponder ID



Transponder ID



Transponder ID



• PORSCHE keys:

- VIN number:  xxxxxxxxxxxxxxxx



- Date of first registration of the vehicle

- Chassis type

- Current VIN

- Vehicle colour code

- Interior upholstery (UPH code)

- Mileage values stored in the key upon last start

- Date / time of the last use of the key

- Fuel level (litres)

- Battery voltage

- Outside temperature

- Coolant temperature

- Position of the key in the immobilizer - "from 0 to 9"

- Key blade cutting code

- Date of creation of the key

- Initial VIN

- Remote control code



-    VIN (current/initial)

-    Odometer

-    Last drive

-    Fuel

-    Battery voltage

-    Shipping

-    Temperature (coolant/outside)

-    Color code

-    Upholstery code

-    Remote frequency

-    Display key/ no display



Transponder ID

Transponder type



- VIN number

- Registration plate (if provided)

- Mileage values stored in the key upon last start

- Fuel level (litres)

- Oil level (proportion)

- Date of the technical inspection (if provided)



Transponder ID



Transponder ID

Position of the key in the immobilizer

Transponder status – Locked (already programmed) or Blank (not programmed)

Mileage values stored in the key upon last start

The last 8 records of mileage (KM + Date)



Transponder ID



Transponder ID

Transponder status – Locked (already programmed) or Blank (not programmed)



Transponder ID
