ZN086 - MC9S12 ADAPTER for ABPROG
Overview
Designated ABPROG adapter for reading and writing specific processors.
Unlocked MC9S12xxxxxxxxx processors
Login for pricing
In stock
Details

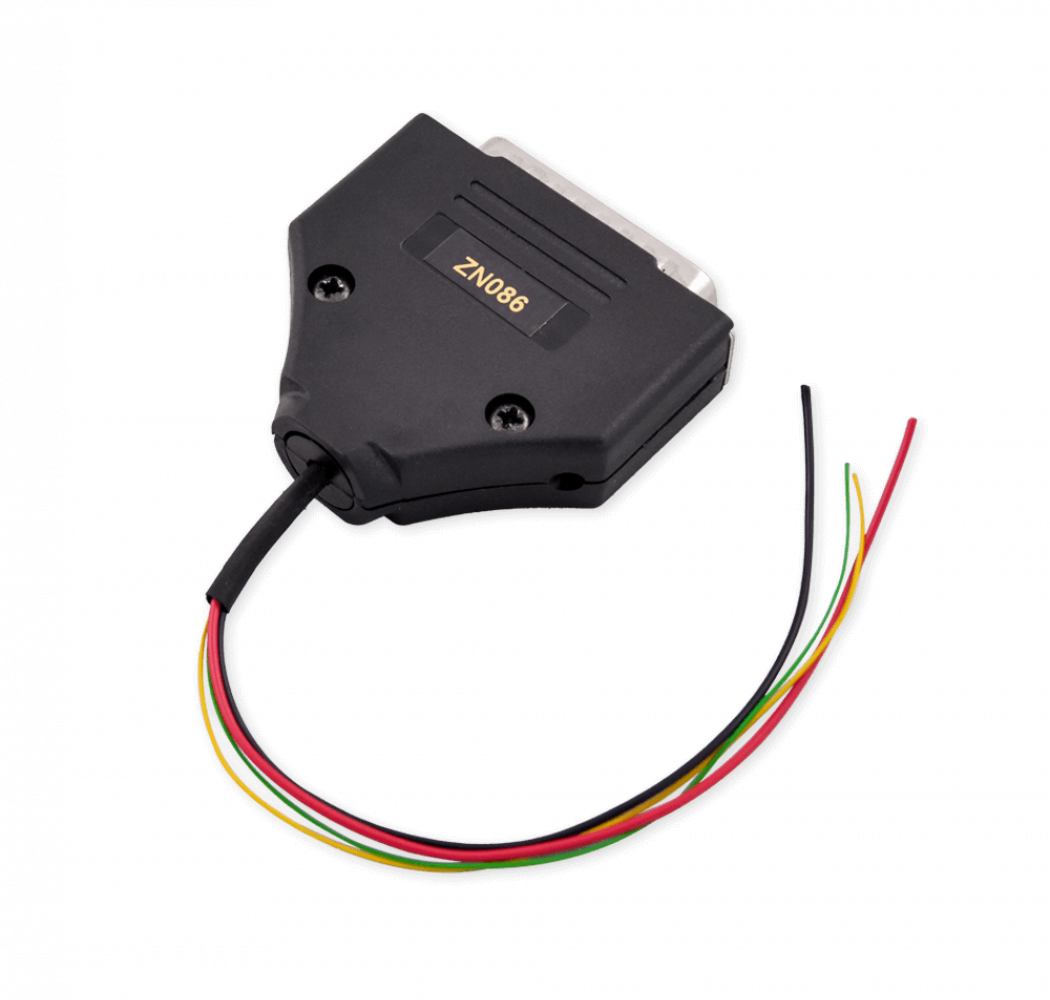

The ZN086 adapter for ABPROG is used for establishing communication with a specific type of processors.This adapter is not a standalone tool, it is used in boot mode by directly soldering the wires to four points on the PCB.
Main functionalities:
Reading data from MC9S12 processors
Writing data from MC9S12 processors
Supported processors:
Unlocked MC9S12xxxxxxxxx processors
Pinout:
DB25 (Male) connector - used for connecting to ABPROG
4 wires 20 cm each as follows:
* 14pin - GND - black 0.25
* 21pin - +5v - red 0.25
* 11pin - RST - yellow 0.14
* 19pin - BKGD - green 0.14
These reading and writing functionalities are accessible via ABPROG Upgraded and Classic menus in the ABRITES software.
AVDI and active Assist plan is required.
The warranty period for this hardware product is 1 year from the date of purchase.
