ZN030 - ABPROG

Overview

This programmer works together with AVDI interface. With the help of this programmer you can :

- For NEC MCU's assembled in the MERCEDES IR-Keys - Read the SSID of the key, Erase the NEC chip and then program it again

- With adapter ZN031 for M35xxx/SPI/I2C Adapter together with Abrites EEPROM Programmer software allows you to erase and write SPI EEPROM memory with and without incremental registers:

  • M35080VP
  • M35080V6
  • D080D0WQ
  • D160D0WQ
  • M95080
  • M95160
  • M95320
  • M95640
  • M95128
Login for pricing
In stock
Details

The ZN030 ABPROG Programmer is a set of devices, designed to assist with many procedures, which require work on bench with multiple units in the vehicle.

Main functionalities:
• Read, write and erase SPI, Microwire and I2C memories
• Read, write and erase memory of the FEM/BDC without removing it
• Rread and write Bosch EDC16 units (MPC)
• Reading, writing, and erasing of NEC MCUs from Mercedes-Benz IR-keys
• Renew HITAG 2 type keys
• Reading and writing NEC V850 in different modules
• Reading EWS masks

Supported modules:
SPI, MICROWIRE AND I2C MEMORIES
Supported SPI memories:
ST M35080VP / M35080V6
ST D080D0WQ
ST D160D0WQ
ST M95010
ST M95020
ST M95040
ST M95080
ST M95160
ST M95320
ST M95640
ST M95128
ST M95256
ST ST95P08

Supported Microwire memories:
93C46 8 bit / 16 bit
93C56 8 bit / 16 bit
93C66 8 bit / 16 bit
93C76 8 bit / 16 bit
93C86 8 bit / 16 bit

Supported I2C memories:
24C01
24C02
24C08
24C16
24C32
24C64
24C128
24C256
24C512
24C1024

EEPROM of the FEM/BDC without removing (ZN057 required)


MPC – READING AND WRITING BOSCH EDC16 UNITS (ZN073 REQUIRED)
MPC555/556 Flash
MPC555/556 CMF A/B Shadow Rows
MPC533/534/564 CMF Flash
MPC533/534/564 Shadow Row
MPC535/536/565/566 CMF Flash
MPC535/536/565/566 CMF A/B Shadow Rows
MPC5XX External Flash (58BW016XX, AMDXX, Intel28XX, Micron 58BW016XX, Numonyx 58BW016XX, Spansion 29CXX, ST 58BW016XX)
MPC5XX External EEPROM (ST 95640, ST 95320, ST 95160, ST 95080)
NEC MCU
UPD70FXXXX PFlash
UPC70F35XX DFlash
DFlash 32KB V850ES
Renault BCM (X95)
Renault HandsFree (X98)

PCF
AUDI 8T0959754XX, 4G0959754XX, 4H0959754XX 315 / 868 / 433 MHz
BMW F HUF5XXX, 5WK496XX 868 / 315 / 433 MHz
BMW E 5WK49XXX Remote / Keyless 868 / 315 / 433 MHz
PORSCHE 7PP969753XX 433 / 434 / 315 MHz
VOLVO 5WK4926X 433 / 900 MHz
RENAULT AES, AES KEYLESS, DACIA AES, FLUENCE, MEGANE 3
OPEL ASTRA H, ZAFIRA B, ASTRA J/INSIGNIA
RANGE ROVER 5E0U40247 434MHz
MITSUBISHI G8D 644M
PSA 21676652, E33CI002, E33CI009, E33CI01B
CHRYSLER JEEP DODGE KOBOTO04A
BUICK 13500224(13584825),13500225(13584825) 315MHz
CHEVROLET 135XXXXX
GM KEYLESS 433MHz 5BTN
CADILLAC NBG009768T 315MHZ 5BTN KEYLESS
Mercedes-Benz NEC KEY

EWS – READING THE FOLLOWING (ZN055 REQUIRED)
0D46J
2D47J

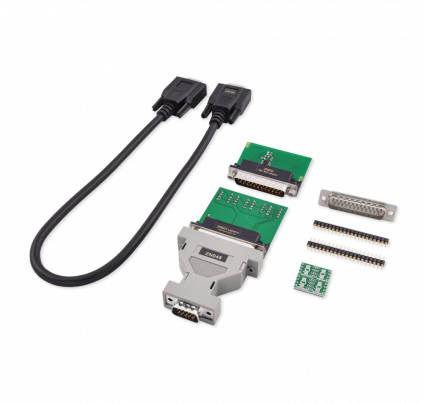

ZN030 INCLUDES
CB101 extension cable.
ZN031 Abprog eeprom BCM - for reading, writing and erasing of SPI, Microwire and I2C memories.
ZN033 NEC MCU adapter - for reading, writing and erasing of NEC MCUs from Mercedes-Benz IR-keys.
ZN034 Abprog flat cable - used for reading and writing different modules such as VAG BCM2 module.
ZN035 Abprog eeprom socket - solution used when reading and writing 8-pin eeprom memories.
ZN045 Abprog programmer
ZN046 Abrites PCF for Abprog is a key renewal adaptor, used to renew Hitag 2 type keys
The required software for all that to work appropriately.
