FN022 - PIN and Key Manager for FCA/Iveco Function
- Key Programming
- Prepare transponder by dump
- Read/Update BCM Config
- PIN Reading for FCA

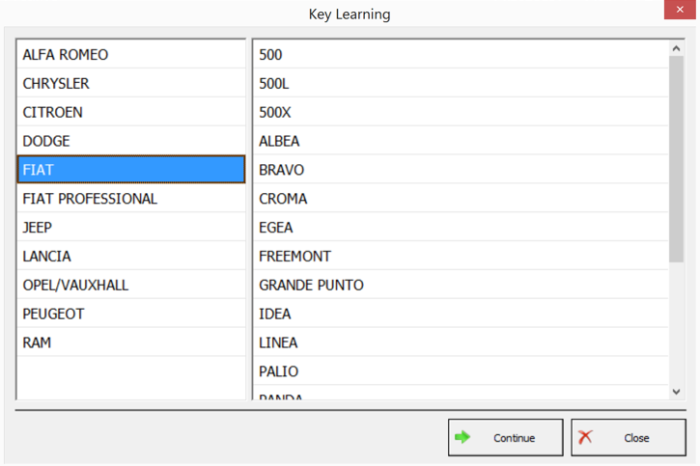

Key learning by OBDII
RAM 1500, 2500, 3500, 4500, 5500
Reading of the PIN codes of the new Chrysler/Dodge/Jeep models such as the Chrysler Pacifica from 2017+
PIN code reading from the Wireless Control Module (WIN/WCM) or Radio Frequency Hub (RFH) for Chrysler, Dodge and Jeep vehicles(2006-2011)

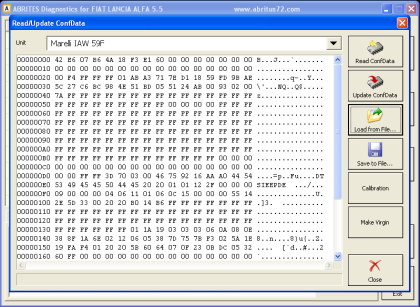

BCM Read/Update ConfData by OBDII
- BCM Delphi (93C66) - NOTE: PIN Code is required!
- BCM Marelli (912DG128, 3K91D)
- BCM Marelli (9S12DG256, 1K79X)
- BCM Marelli (NEC 70F3237/70F3378,95160)
- BCM Marelli (NEC 70F3633,95320)- BCM Siemens (9S12DG128)
- BCM from Delphi with NEC 70F3632/70F363
- Remote Frequency HUB direct connection via internal CAN for new models.
- Preparing transponder by dump of immobiliser to be ready for learning
Remote control programming by OBDII

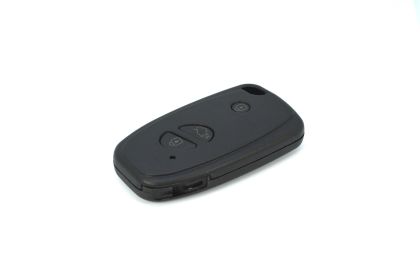

*The latest license includes support for 2020+ FCA keyless vehicles such as the Alfa Romeo Giulia/Stelvio, Jeep Compass/Renegade, Fiat 500X, Jeep Wrangler/Gladiator, Dodge RAM and others.
